1.Longer life span The life span of LifePO4 battery is longer than Pb-A battery.When your car is parked for a long time,the Pb-A battery will run out and affect its service life.LifePO4 battery will use normally after charging,and not effect it’ s life span.
2.More safe Five Protection function to keep it safety use.and LifePO4 battery main material is iron,Not easy to fire and explode.
3.High energy density LifePO4 battery energy is high,With the same volume,the battery capacity is higher 50% than Pb-A battery.
All-Round Battery Safety Protection
The BMS provides complete safeguards including overcharge, over-discharge, over-current, short circuit, over-temperature, and under-temperature protection. It effectively prevents battery damage and ensures safe operation in heavy-duty motive power scenarios.

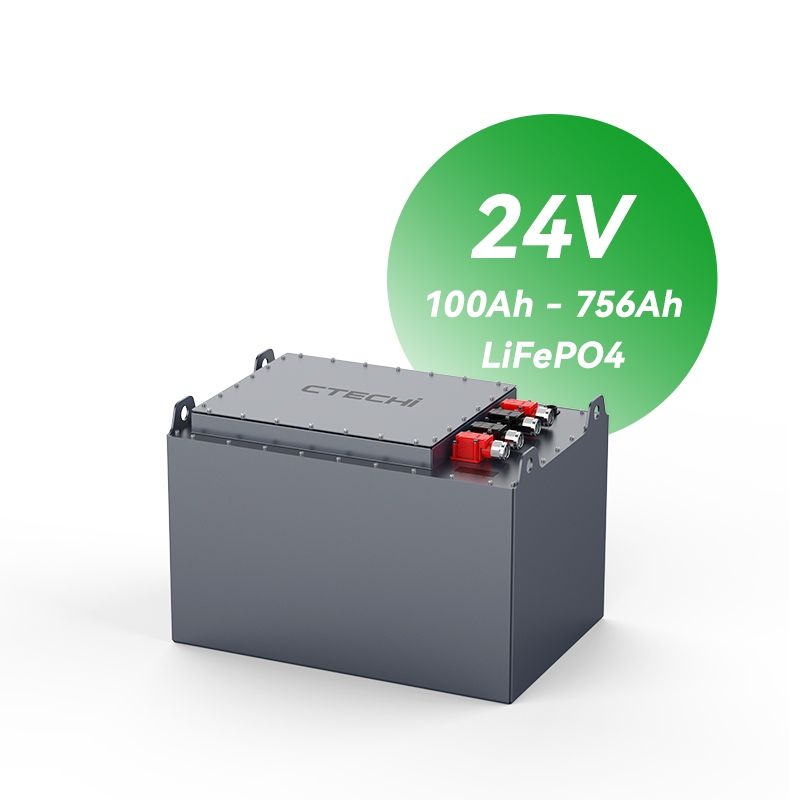

| 24V system |
| Model |
Nominal voltage |
Nominal capacity |
Stored energy |
Dimensions (mm) |
Number of Module Methods |
Standard Case Weight |
Casing material |
IP
rating |
| B-LFP24-100MH |
25.6V |
100Ah |
2.56kWh |
Support Customized |
1P*8S*1 |
42kg( 88.18lbs. ) |
Steel |
IP65 |
| B-LFP24-135MH |
135Ah |
3.46kWh |
1P*8S*1 |
62kg( 136.69lbs. ) |
| B-LFP24-173MH |
173Ah |
4.43kWh |
1P*8S*1 |
73kg( 160.94lbs. ) |
| B-LFP24-205MH |
205Ah |
5.25kWh |
1P*4S*2 |
80kg( 176.37lbs. ) |
| B-LFP24-230MH |
230Ah |
5.89kWh |
1P*8S*1 |
85kg( 187.39lbs. ) |
| B-LFP24-280MH |
280Ah |
7.17kWh |
1P*8S*1 |
97kg( 213.85lbs. ) |
| B-LFP24-304MH |
304Ah |
7.78kWh |
1P*8S*1 |
102kg( 224.87lbs. ) |
| B-LFP24-346MH |
346Ah |
8.86kWh |
2P*4S*2 |
119kg( 262.35lbs. ) |
| B-LFP24-410MH |
410Ah |
10.50kWh |
2P*4S*2 |
142kg( 313.06lbs. ) |
| B-LFP24-460MH |
460Ah |
11.78kWh |
2P*4S*2 |
156kg( 343.92lbs. ) |
| B-LFP24-519MH |
519Ah |
13.29kWh |
3P*4S*2 |
171kg( 376.99lbs. ) |
| B-LFP24-560MH |
560Ah |
14.34kWh |
2P*4S*2 |
181kg( 399.04lbs. ) |
| B-LFP24-608MH |
608Ah |
15.56kWh |
2P*4S*2 |
190kg( 418.88lbs. ) |
| B-LFP24-615MH |
615Ah |
15.74kWh |
3P*4S*2 |
191kg( 421.08lbs. ) |
| B-LFP24-690MH |
690Ah |
17.66kWh |
3P*4S*2 |
210kg( 462.97lbs. ) |
| B-LFP24-840MH |
840Ah |
20.99kWh |
3P*2S*4 |
244kg( 537.93lbs. ) |
| B-LFP24-920MH |
920Ah |
23.55kWh |
4P*2S*4 |
270kg( 595.25lbs. ) |
| B-LFP24-1120MH |
1120Ah |
28.67kWh |
4P*2S*4 |
317kg( 698.87lbs. ) |
Q: What voltages are available?A: 12V, 24V, 36V, 48V, 60V, 72V and customizable.
Q: Does it support communication?A: Yes, supports CAN, RS485, UART for monitoring.
Q: What protections are included?A: Overcharge, over-discharge, over-current, short circuit, over/under temperature.
Q: Can it be used in electric forklifts?A: Yes, ideal for forklifts, AGVs, EV and motive power.
Q: Can we customize parameters?A: Yes, factory direct support customization.
