Product Overview
Six 6V lead-acid blocks and the cables linking them is what most 36V carts carry today. The 36V lithium golf cart battery replaces the whole set with one 100Ah LiFePO4 pack that sits in the same bay and connects in a single step. The cart itself does not change — same throttle, same controller, same driving — but the routine around it does.

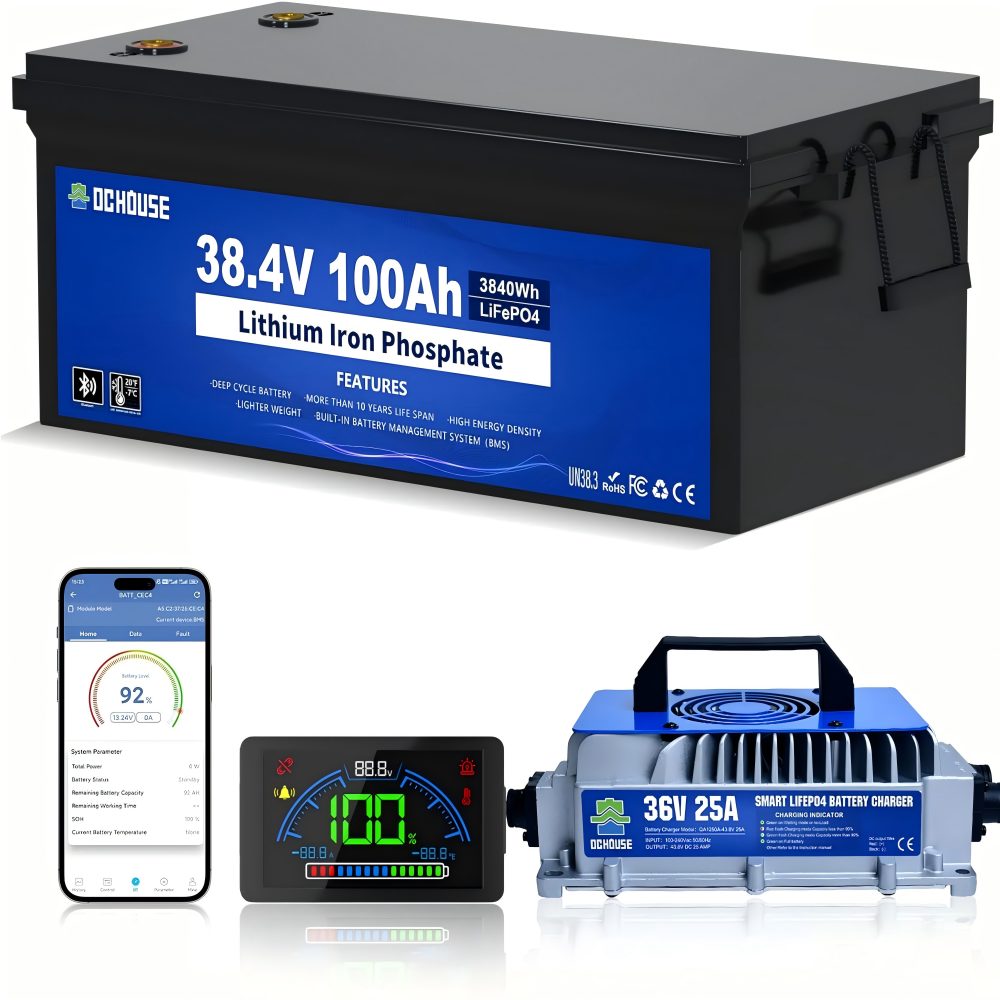

The pack arrives as a working kit: the battery, a 36V 25A charger matched to it, and an LCD monitor that pairs with a phone app. That matters on a first conversion, because a lithium pack should not be fed from the lead-acid charger the cart came with, and sourcing the right charger separately is where many conversions stall.
It is made for people who use a cart rather than admire it: the owner who runs errands and plays at weekends, the shop converting trade-ins for resale, the course or campus crew keeping several carts in service. They all want the same thing — a pack that starts every morning, holds its pull on the back nine, and does not need a new set every couple of seasons.
One block instead of six also means far less to go wrong: no chain of interconnecting cables to corrode, one pair of terminals to check, and one pack to lift out when the time comes.
Build & Cell Retention
A LiFePO4 lithium battery is only as good as the way its cells are held in place. Inside this pack the cells are clamped with metal clips rather than taped or foamed into the case, so they stay put when the cart crosses a kerb, a root or a rough track. The maker's figure for that retention is up to 30% longer cell life than simple fixing methods — cells that are not flexing against their own connections keep their internal joints tight through thousands of cycles.
The cells themselves are class A units, matched within the pack so no single cell works harder than its neighbours. That matters on a long discharge: an unmatched cell is the one that runs hot and drags the rest of the pack down with it.
The case is a rigid shell that takes knocks instead of passing them on to the cells, and the carry handles are moulded into it rather than bolted on. Terminals sit on the top face with room around them for a spanner — a small thing until you are re-tightening a connection in a dim garage.
There is no service schedule to keep between seasons, so the build question is really about how long the pack holds its capacity rather than how often you have to open it up.
Fitting & Installation

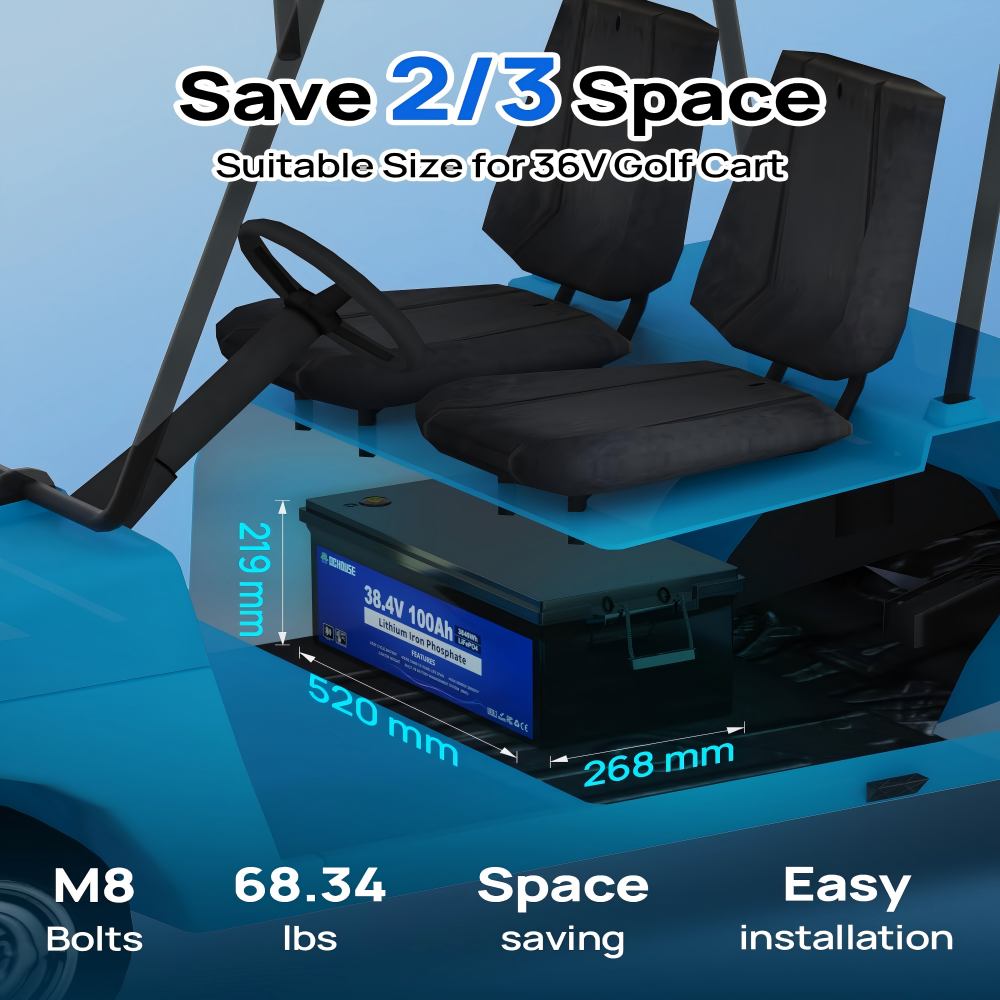

Fitting a lithium battery for golf cart use is mostly a measuring job. The pack replaces the whole 6V set, so what matters is the size of the bay rather than the size of each old block: check length, width and height, then add clearance for the terminals and for the cables that now run to one pair of posts instead of a daisy chain of six.
Lift the pack in by its carry handles — it is a one-person job — and secure it with the hold-down that held the old set, or with a strap rated for the weight. The terminals take the cart's existing leads; check the lug size, and make sure each connection is clean and tight before the first run, because a loose terminal is the most common reason a new pack appears to have failed.
Before ordering, confirm the cart is a 36V system; there is usually a label behind the seat or a marking on the controller that settles it. If the cart has been modified or the label is gone, a photo of the bay and the controller is enough for our team to check it for you.
There is no acid to handle and no venting to allow for, so the bay stays dry and the old tray does not need re-lining. Going from six blocks to one also frees space around the pack, which makes the remaining cabling easier to route and inspect.
Cart, Marine & Off-Grid Uses
- 36V golf carts. Personal carts, club cars in private use and lightly modified machines with a 36V controller. Start, stop, short runs and long idle gaps between them is the duty a lithium battery for golf cart owners actually put it through, and it is the duty this pack is built around.
- Course, campus and worksite utility carts. Carts working a shift of short trips with long pauses are the hardest life for lead-acid, which dislikes sitting part-charged. A deep cycle lithium battery does not lose capacity to that pattern; it can wait at half charge and pick up where it left off.
- Golf cart shops and resellers. One pack, one charger, one monitor, one day's work per cart. Most electric golf cart batteries sold as replacements are still lead-acid, so a cart that goes out with a working state-of-charge display is easier to demonstrate to the next buyer.
- 36V trolling motors and small boat rigs. Three lead-acid blocks at the stern become one pack that is easier to lift and easier to trim the boat around. Long, slow draws are exactly what this chemistry handles well.
- Off-grid and backup power. Where a 36V inverter or a 36V DC circuit already exists — shed lights, a pump, a workshop socket — the pack works as storage. Check the inverter's input window before you buy, because 36V systems vary.
Specifications
| Chemistry | LiFePO4 (lithium iron phosphate) |
| Rated voltage | 36V system (38.4V nominal) |
| Rated capacity | 100Ah |
| Usable energy | 3840Wh (3.84kWh) |
| Battery management | Smart 150A BMS |
| Included charger | 36V 25A LiFePO4 charger |
| Cycle life | 8000+ deep cycles |
| Ingress protection | IP67 |
| Certifications | UN38.3, RoHS, FC, CE |
| Dimensions | 20.55 × 10.55 × 9.06 in |
| Weight | 68.3 lb |
Power, Climbing & Range
Where a lead-acid set sags as it discharges, this pack holds its voltage much further down the charge. What you notice on the course is that the cart still pulls cleanly on the last holes instead of feeling flat from the tenth. On a normal cart the pack covers 30–40 miles between charges, which is several rounds of 18 with stops in between.
Hills are where the numbers earn their keep. The pack delivers a surge of about 500A for roughly five seconds — the window a stopped cart on a slope needs to get moving with two passengers and a bag aboard. It will climb a slope of about 20 degrees without the motor bogging and is matched to motors up to 5 kW. The BMS allows that surge for starts and climbs, then holds continuous output inside its rating so the cells are not cooked on a long, loaded run.
The other difference shows up in how you read the charge. Traditional 36V golf cart batteries lose usable capacity well before the gauge says empty, so the last quarter of the dial is guesswork; here the state of charge tracks what is actually left, and you can plan a route around the number.
Bluetooth App & LCD Monitor
- Two ways to read the pack. A compact LCD monitor (2.76 × 0.98 × 1.77 in) mounts where you can glance at it with the cart parked, and the same data is mirrored in the phone app over Bluetooth.
- A golf cart lithium battery with a live gauge. The app shows remaining capacity in Ah as well as a percentage — far more useful for planning than a four-bar indicator that only moves at the ends.
- Voltage, current and temperature. Pack voltage, what the cart is drawing and cell temperature are all on screen; the last one matters most on a frosty morning.
- A fault page instead of guesswork. When something reads out of range the app flags it, so a cart that will not move can be checked before anyone starts pulling cables.
- Simple on purpose. No setup menus and no graphs: the app opens on the numbers anyone running electric golf cart batteries day to day actually needs, with the detail one tap behind them.
- Range and mounting. Bluetooth holds a connection at around 20 metres, so a charge can be watched from the clubhouse; mount the display out of direct spray and where the screen stays readable in daylight.

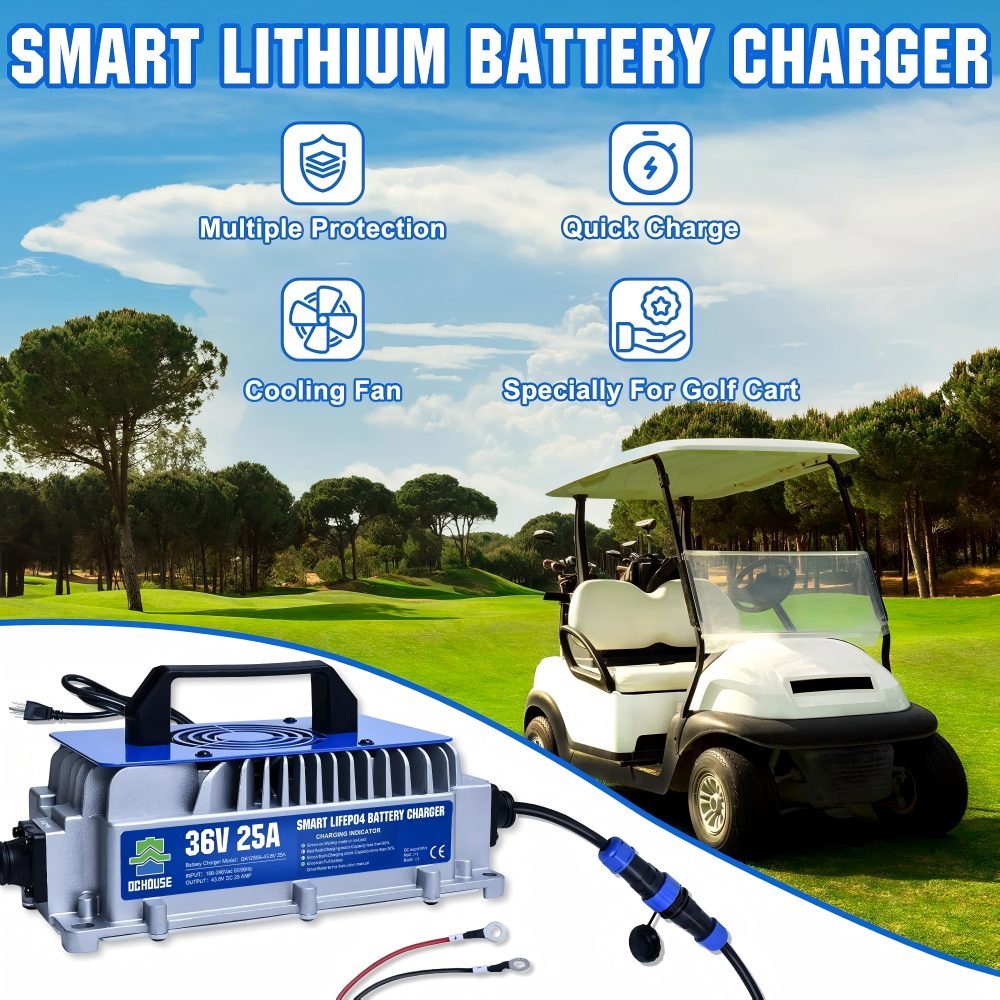

Charging with the 25A Charger
- Park the cart, switch it off and connect the charger leads to the pack terminals. The charging cable is 16.4 ft long, so the cart can stay where it is parked instead of being squeezed up to an outlet.
- Plug into any 100–240VAC 50/60Hz outlet. A golf cart battery charger built for lead-acid will not charge this pack correctly — the lithium profile is different, and the 25A unit supplied with the kit is set to it.
- Watch the charging indicator while it works. From empty to full takes about 4 hours, so an afternoon or an overnight covers a complete charge.
- If the pack has been run flat and the BMS has shut it down, the 0V charging function can wake it and start the cycle again without any special procedure.
- Because it is a LiFePO4 lithium battery, there is no absorption or float stage to wait through once the indicator shows full — the charge is finished when the light says so.
- The routine stays short because a deep cycle lithium battery does not need equalising or watering between charges: plug in, let it finish, unplug, and put the charger away dry.

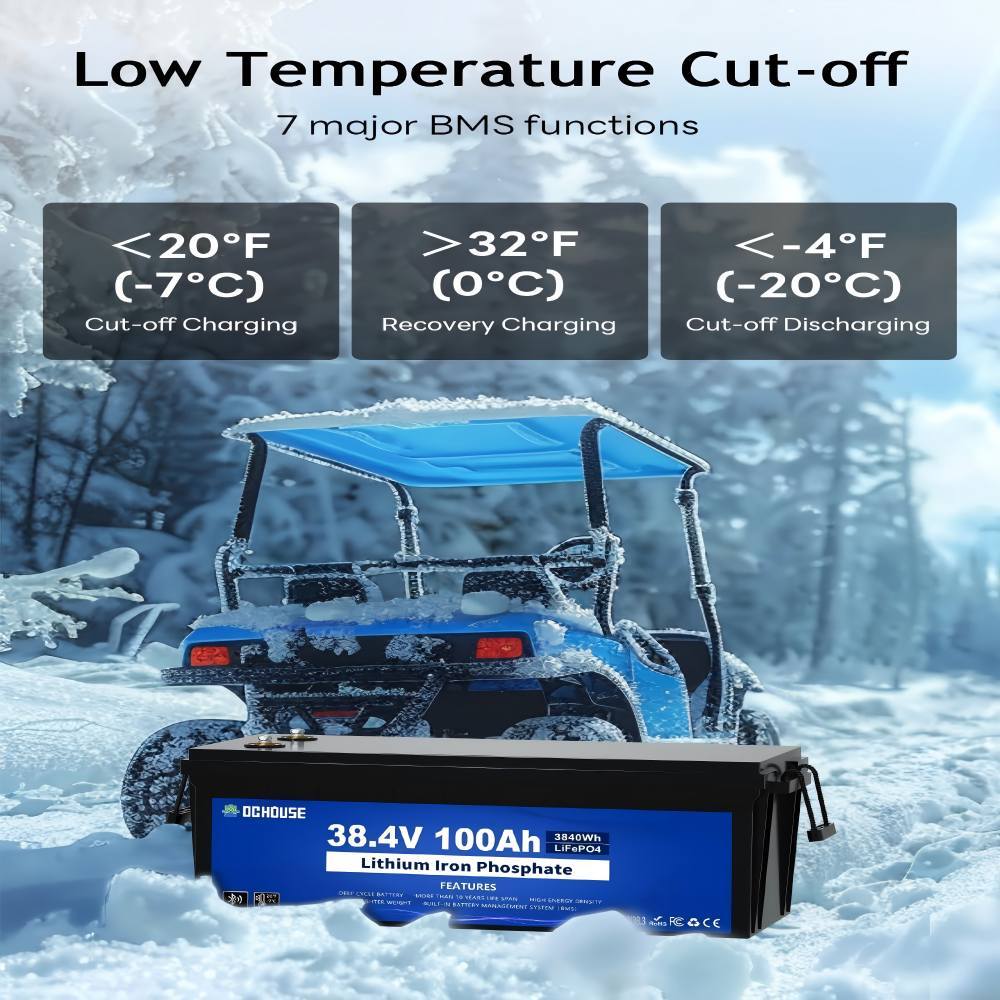

Cold-Weather Protection
- Charging stops below 20 °F (−7 °C). A temperature sensor inside the pack tells the BMS to refuse charge current at that point. This is the protection that matters most: charging a lithium pack below freezing is what damages cells, and the block happens automatically rather than relying on you to remember.
- Discharge stops below 4 °F (−16 °C). Deeper than that, the pack cuts output rather than let the cells be pushed outside their working window. Ordinary winter riding stays well above the line; it is the deep cold that triggers it.
- Recovery at 32 °F (0 °C). Once the pack warms back above freezing, charging resumes on its own — no reset sequence and no trip to a dealer.
- Why the guard is worth having. A 36V lithium golf cart battery without low-temperature protection will accept charge on a frosty morning and quietly lose capacity over the seasons that follow. The guard is most of the difference between a pack that lasts and one that fades early.
- What it means in practice. Charge in a garage or a sheltered spot when the forecast is below freezing; if the cart lives outside, let the day warm up before plugging in. The pack can still be driven in the cold — it is charging that is blocked.
- Older packs leave this to you. Most 36V golf cart batteries built for cart use expect the owner to judge the temperature.
- The charger cannot save a frozen pack. A golf cart battery charger will keep pushing current into a frozen battery if nothing inside stops it. Here the stop happens inside the pack, before the charger can do any harm.
Ordering & Delivery
- Measure the battery bay and confirm the cart runs a 36V system. 36V golf cart batteries come in more shapes than the old 6V blocks, so the compartment — not the label — decides whether a pack fits.
- Tell us the cart model if you want a fit check; a photo of the bay is usually enough for our team to confirm clearance.
- Choose the warehouse nearest you — USA, Europe or Canada. Stock orders are processed in 3–7 days, and custom builds take about 35 days.
- Shipping from local stock takes 3–7 days, with swift delivery to the address you enter at checkout.
- If you already own a 36V golf cart battery charger, ask us to check its profile before you order.
- The golf cart lithium battery and the accessories are packed as two separate parcels and may arrive on different days — keep the tracking email until both are in.
- Every pack carries a 5-year warranty, and unused stock items can be returned within 30 days of delivery.
About Our Company
Xinyubattery is the brand of Shenzhenshi Xinyu Newenergy Technology Co.,LTD, a Shenzhen-based company founded in 2016 and working in green power solutions for more than ten years. Through a vetted network of production partners, we bring a broad range of power products together in one place and consolidate each order for you. Products are checked before dispatch, packed for export and shipped from local stock, and our team stays available for technical advice, fitting questions and after-sales help.
FAQ
Is this a direct replacement for the six 6V batteries in my cart?
Yes, if the cart runs a 36V system. The 36V lithium golf cart battery replaces the whole 6V set with one 100Ah block, so the six interconnecting cables go away and you connect a single pair of leads. Check the bay against the pack dimensions and confirm the controller is marked 36V; a 48V cart needs a 48V pack. If the cart has been modified or you cannot find a voltage label, send us a photo and we will check it for you.
Can I use it for a 36V trolling motor or an off-grid inverter?
It is a 36V DC source, so yes where the load is built for 36V. A lithium battery for golf cart use and a trolling motor draw current in similar bursts, which the 150A BMS and the short surge cover. For an inverter, stay inside the pack's continuous rating and check the inverter's input window before you buy — tell us what you plan to run and we will say whether the draw sits in the pack's comfort zone.
How do I choose between this 36V pack and a 48V conversion?
Match the pack to the cart you already have. A 36V cart with a 36V controller and motor runs on this pack and needs no other changes, while a 48V cart needs a 48V pack and its own charger. A 48V conversion makes sense when you are rebuilding a cart for more speed or heavier loads, but it is a bigger job; the golf cart lithium battery here is the drop-in route for a standard 36V cart.
Does it need the maintenance a lead-acid set needs?
No watering, no terminal brushing and no acid handling. A LiFePO4 lithium battery is sealed, so the routine is a visual check of the terminals and a look at the state of charge before a long run. Keep the posts clean and tight, charge it fully before the season starts, and check that the charger and cables are dry before you plug in.
How should I store the pack between seasons?
Leave it partly charged rather than empty, park the cart in a dry place and disconnect the pack if the cart will sit for months. A deep cycle lithium battery does not lose its charge the way lead-acid does, so it will still have most of what you left in it — top it up before the first run and watch the monitor while it charges. Do not leave it connected to the charger for the whole off-season.
What should I do with the old lead-acid batteries?
Do not put them in household waste. Lead-acid cores are almost entirely recyclable, and most cart dealers, battery shops and municipal depots take them, often against a small scrap credit. Because electric golf cart batteries are usually replaced as a set, bring all six blocks in together rather than leaving one behind in the garage.
