Product Overview

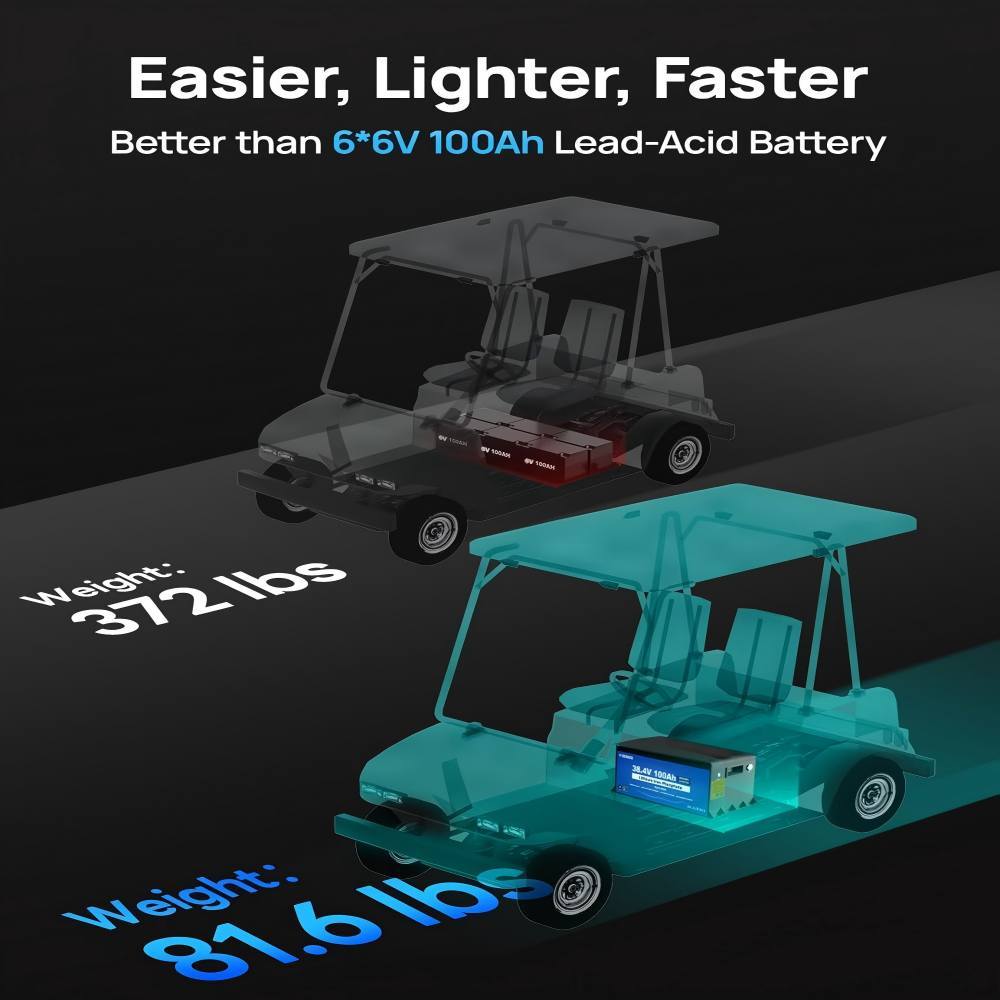

The Pro version of our 36V 100Ah pack puts a single sealed lithium iron phosphate battery where six 6V or four 8V lead-acid blocks used to sit. One unit goes in, one set of terminals gets connected, and the watering can, the hydrometer and the corroded posts stay in the garage. As a lithium battery for golf cart use, it is shaped around the duty a cart really sees: short, hard current pulls on a slope, long idle stretches between rounds, and a recharge every few days. Three kinds of buyer end up here. Private owners replace a lead-acid bank that has gone soft after three or four seasons and want the cart lighter and quicker without touching the motor or controller. Clubs and small fleets standardise on one pack per cart instead of six blocks that fail at different times. Nothing here needs a workshop. The pack arrives assembled, the charger is matched to it and the monitor wires into the cart's key switch, so the first day is a swap rather than a build.
Metal Case & Safety Design

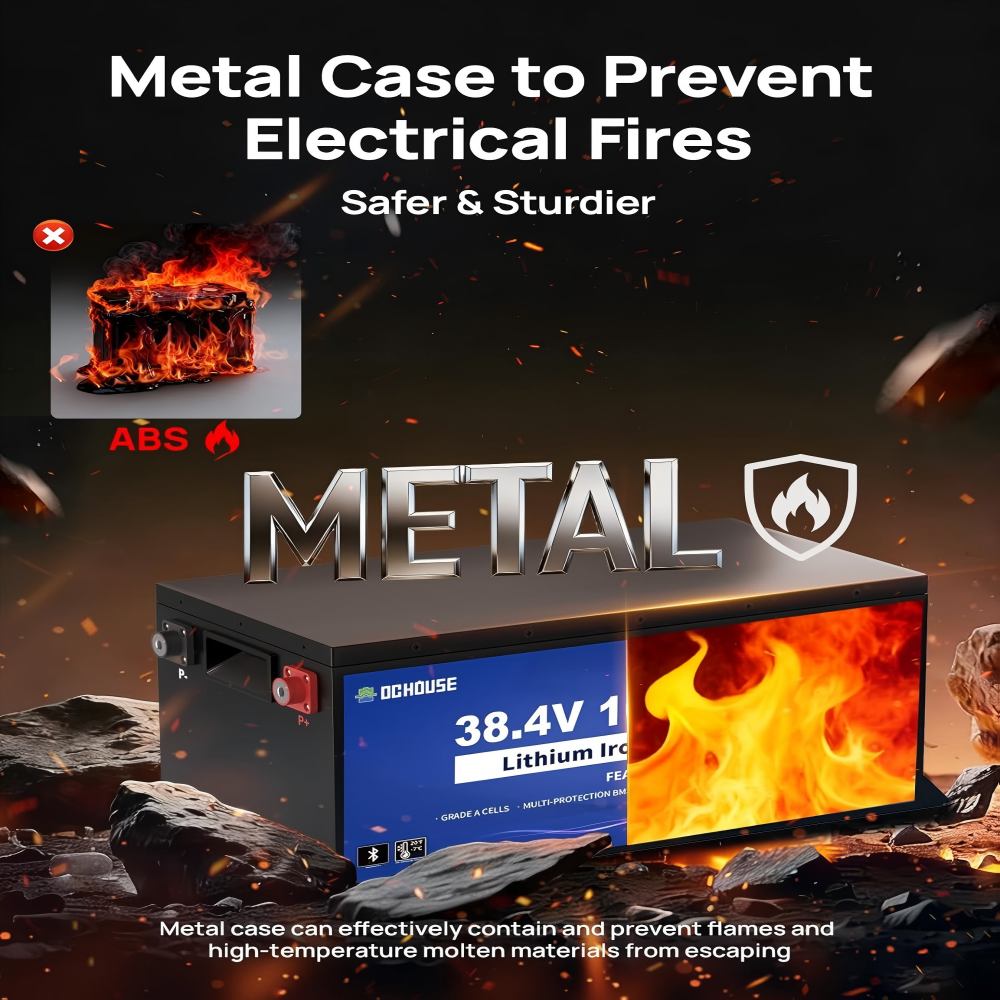

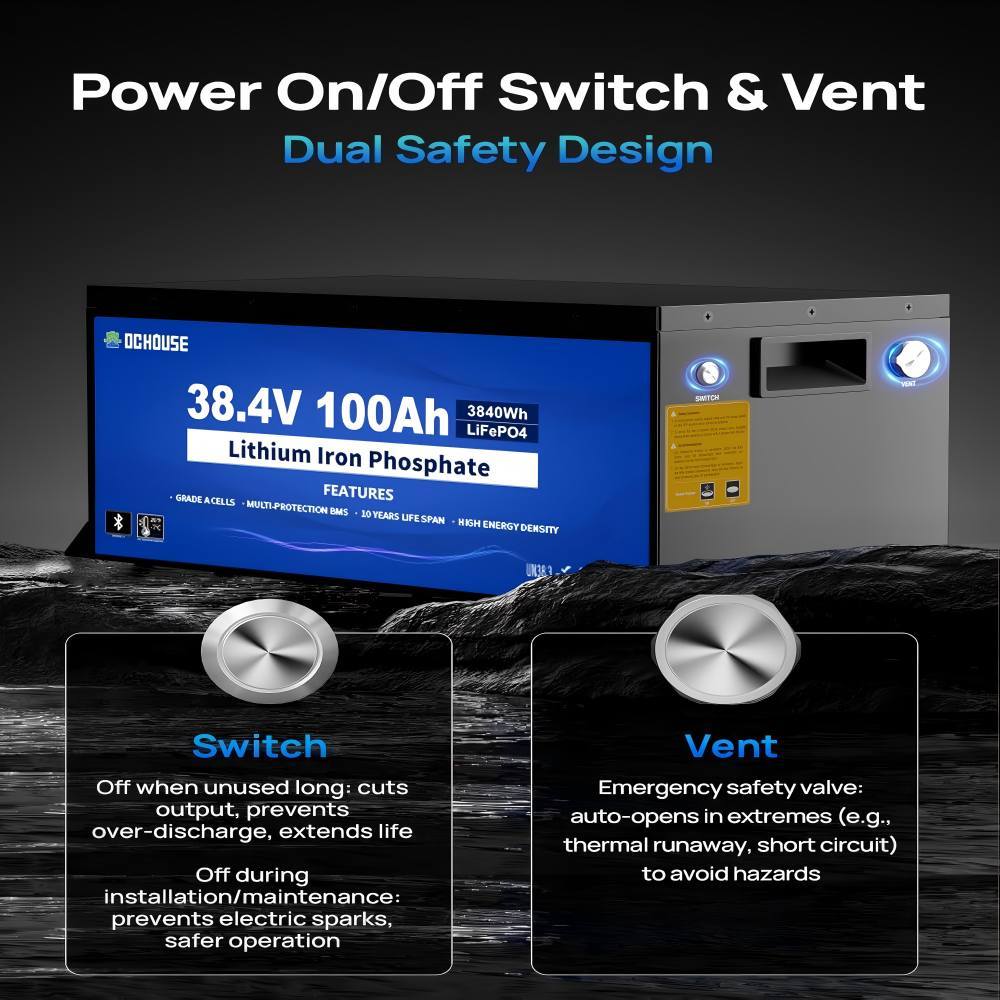

The case is the first thing that separates this pack from a budget block. The cells sit inside a sheet-metal housing that is fireproof and impact-resistant, so a stone off the fairway or a knock in the workshop does not crack the shell. A one-touch switch on the side cuts the output completely — useful during installation, when there is no live terminal to spark against, and useful in storage, where it stops slow drain flattening the pack between seasons. If internal pressure ever climbs in an extreme event such as a short circuit, a pressure relief valve opens and vents the housing rather than letting it rupture.
Inside, the cells are clamped by metal fixtures instead of tape or foam. Cart vibration is relentless, and a cell that can move will rub, heat up and shorten the life of the whole bank; clamping keeps the assembly rigid and the connections stable. That construction, together with Grade A cells, is what supports the service life we quote — around 30% longer than a loosely built pack, and up to eight times the life of the lead-acid set the cart came with. It is also why lithium golf cart batteries built this way keep their capacity instead of fading after two seasons.
Treat this 100Ah LiFePO4 battery as a long-term deep cycle pack rather than a consumable. Keep the terminals dry, leave the switch off when the cart sits for weeks, and it should outlast several lead-acid replacements.
Power & BMS Performance

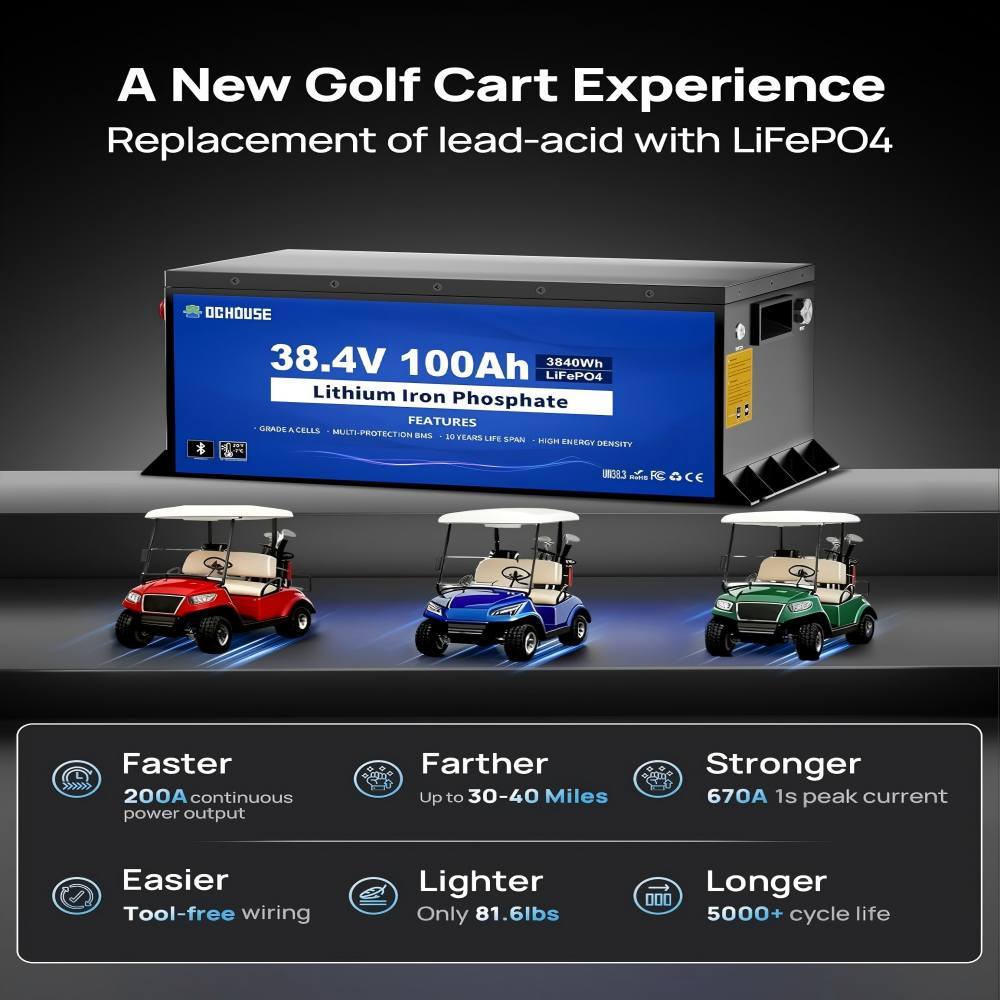

- 200A BMS, 2C rated — the management board is specified to 200A continuous with 2C discharge support, so current keeps flowing when the motor asks for a hard pull instead of cutting out halfway up a ramp.
- 280A held for 30 seconds — a sustained burst for long grades, a loaded trailer or pulling out of soft ground.
- 670A for one second — the instantaneous peak that gets a cart with four players and bags rolling from a standstill.
- Motors up to 5 kW — if your controller and motor sit in the usual 36V cart range, the pack has the headroom to feed them.
- Around 20° of climbing — a loaded cart takes a 20-degree slope without bogging, which is where the larger board earns its keep.
- 30–40 miles per charge — this 36V 100Ah LiFePO4 battery covers a long day of short trips on one charge, mixing course running with road stretches.
- Five to seven rounds — the figure most owners of 36V golf cart batteries plan around, based on 18 holes with two players and their bags.
Applications
| Golf carts | The main job for this golf cart lithium battery — a six-block lead-acid bank comes out, one pack goes in |
| Trolling motors | Deep cycle lithium battery duty offshore, with a day of slow trolling on a single charge |
| Marine and boat | House loads, fish finders, pumps and cabin lights on small craft |
| RV and camper | House power for lights, a compressor fridge and the water pump |
| Utility and lawn | Electric utility carts and mower conversions running a 36V system |
| Home backup | Keeps a few essential circuits alive through an outage |
| Remote sites | Job trailers, cabins and market stalls with no mains supply |
Specifications
| Chemistry | LiFePO4 (lithium iron phosphate) |
| Nominal voltage | 38.4 V (36V system) |
| Rated capacity | 100 Ah |
| Stored energy | 3.84 kWh |
| BMS | 200 A, 2C rated |
| Maximum discharge, 30 s | 280 A |
| Peak current, 1 s | 670 A |
| Motor support | Up to 5 kW |
| Dimensions | 20.71 × 10.55 × 9.17 in |
| Weight | 36.3 kg (80 lb) |
Charging & Monitoring
- 25A charger in the box — a matched golf cart battery charger with 43.8 V output, so there is nothing else to buy before the first charge.
- Full in about four hours — a 100Ah LiFePO4 battery at this charge rate goes from low to full in roughly four hours, which fits comfortably into an evening in the garage.
- 2.7 m charging cable — enough lead that the cart can stay in its usual spot while the charger reaches the socket.
- 100–240 VAC input — the charger runs on standard mains voltage at 50/60 Hz in different regions.
- 0V reactivation — if the pack has been run flat and shut itself down, the charger can wake it and start a normal charge instead of leaving you with a dead cart.

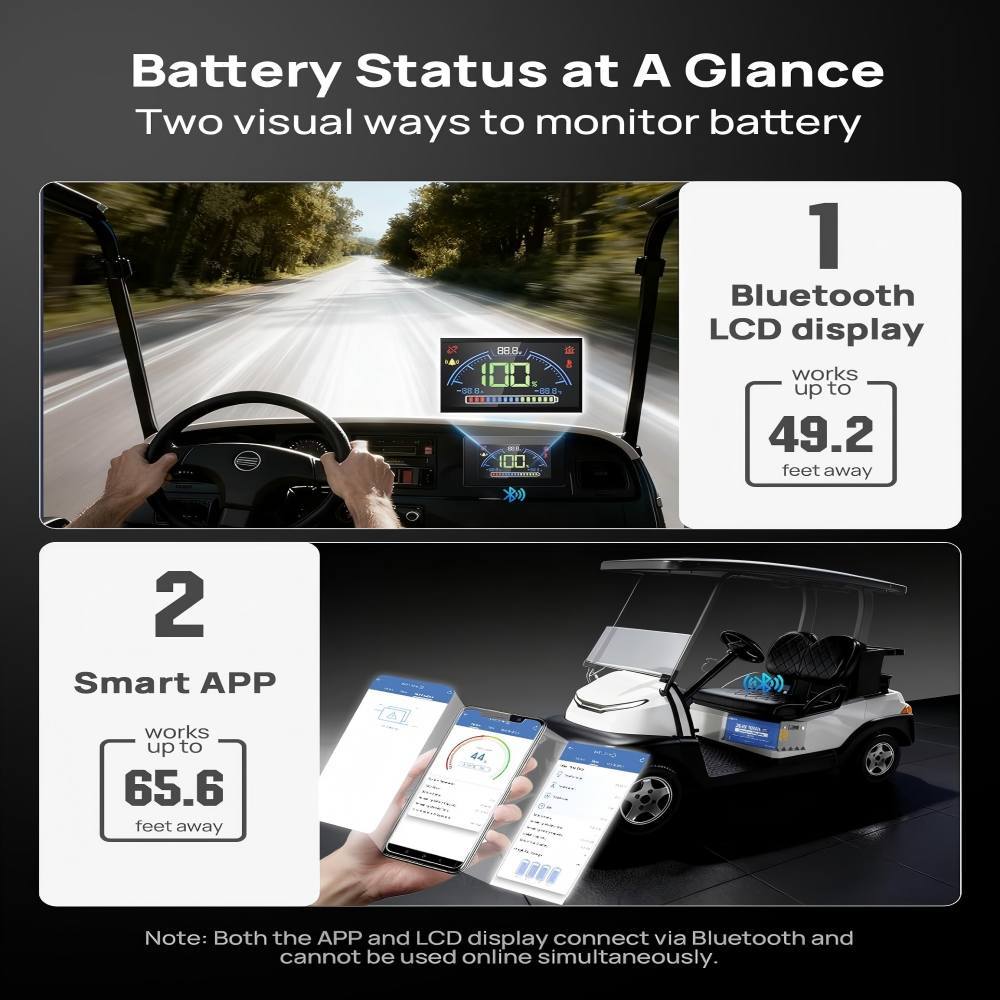

- LCD monitor — a 2.76 × 0.98 × 1.77 in display that wires to the cart's key switch terminals and shows state of charge whenever the cart is switched on.
- Bluetooth app — from up to about 15 m away you can read state of charge, voltage, current and temperature on a phone, which tells you far more than a three-light gauge.
- Wired display option — the pack keeps a communication port for a fixed dash monitor if you prefer one; that display is bought separately.
Kit Contents & Installation
- Clear the space — lift the seat, check the tray and the height above the terminals, and remove any old hold-down that will not be reused, because a 36V lithium golf cart battery needs a flat, supported base.

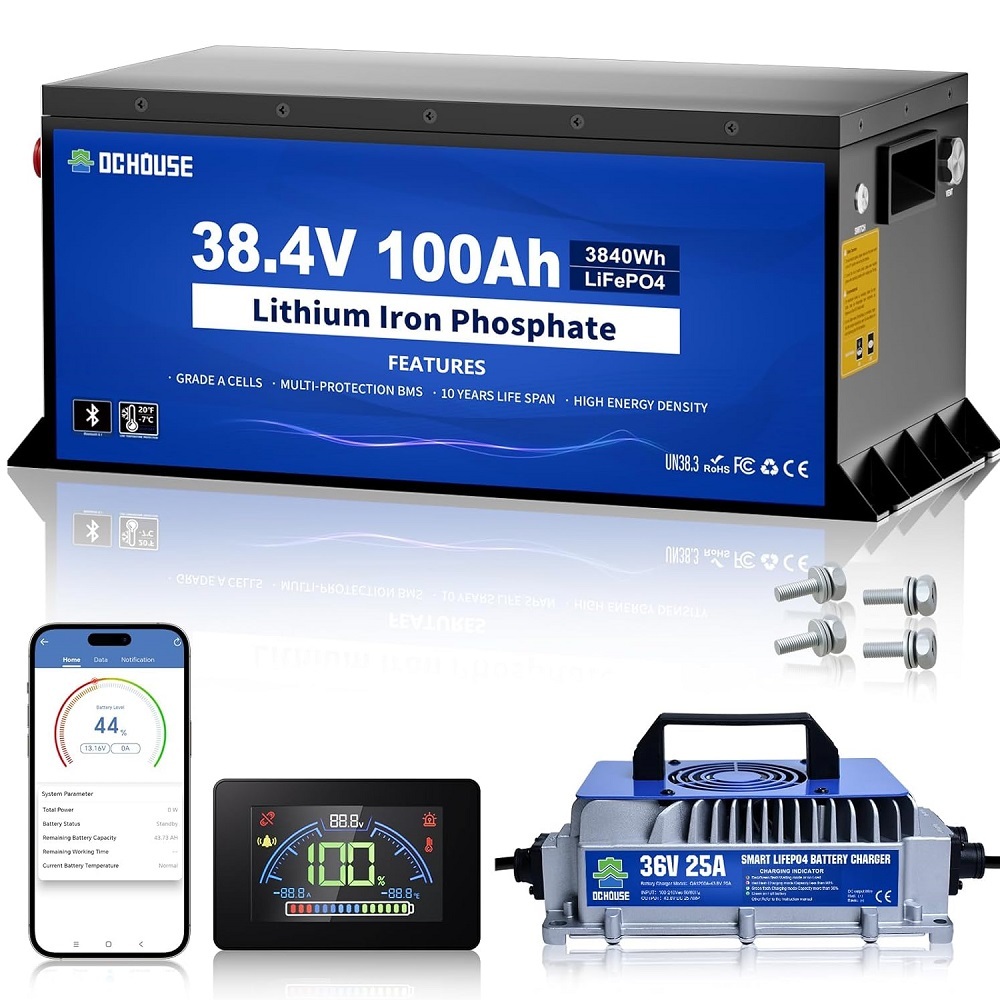

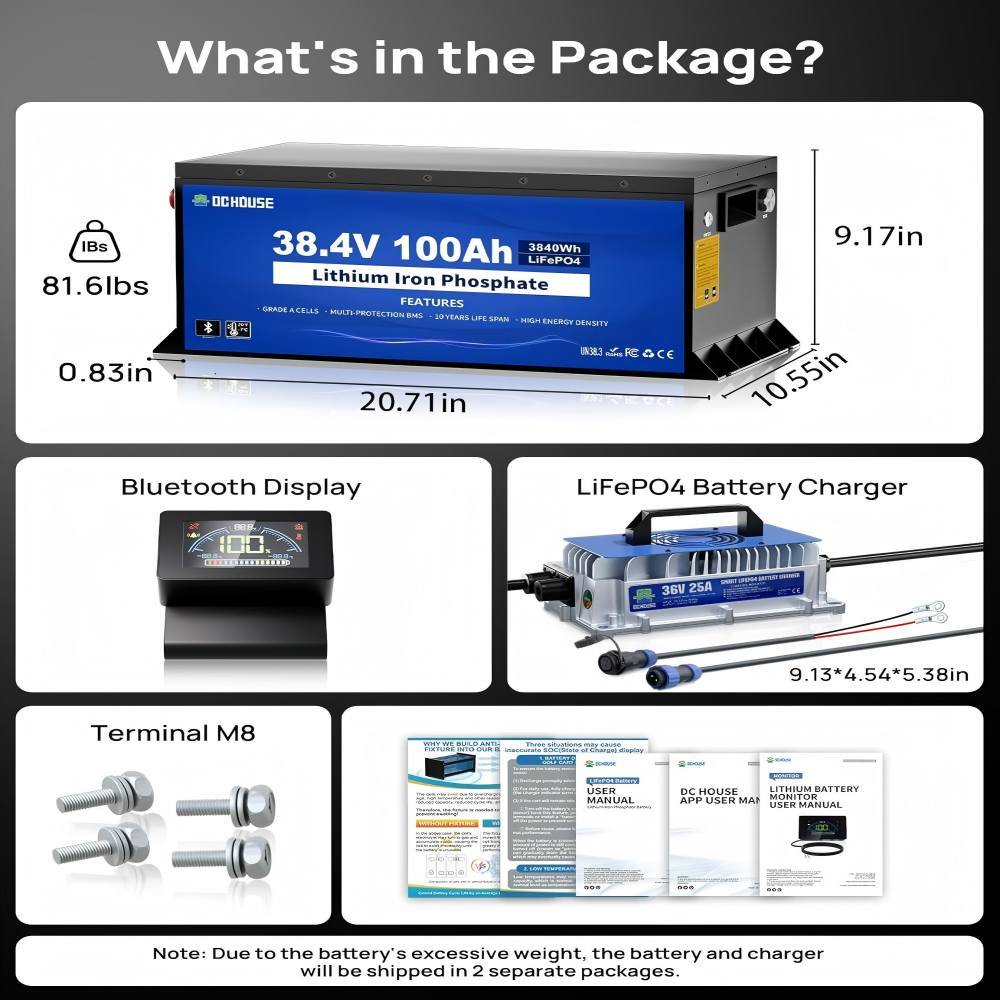

- Unpack and check the parts — the carton holds the battery, the 25A charger, the Bluetooth LCD monitor, mounting bolts, terminal bolts and nuts, and printed manuals.
- Leave the switch off — the one-touch switch stays off through the whole install, so there is no live terminal to arc against a spanner.
- Take the old bank out — one pack replaces all six blocks, which is why swapping 36V golf cart batteries is an afternoon job rather than a rewire.
- Set and secure the pack — lower it in, line up the mounting points and fix it with the supplied bolts so it cannot shift under braking.
- Connect terminals, then monitor — battery leads first, then the monitor to the cart's key switch terminals; pair the app once the pack is switched on.
- Run the first charge — plug in the supplied charger and let it finish before the first round.
- Keep the paperwork — file the manuals with the cart's documents; it makes any later service question quicker to answer.
Ordering & Delivery
- Order from local stock — in-stock packs ship from the local warehouse with swift delivery, usually 3–7 days.
- Custom builds — if you need a modified pack rather than a stock unit, plan on about 35 days.
- Two parcels, one order — the battery and its golf cart battery charger travel separately and may arrive on different days; if one box lands first, the second is already on its way.
- Five-year warranty — the pack is covered by a 5-year warranty, and the team stays reachable for fitting or charging questions after delivery.
- Thirty days to return — a return can be requested within 30 days of delivery; contact the team and they will walk you through the steps.
About Our Company
Xinyubattery is the brand of Shenzhenshi Xinyu Newenergy Technology Co.,LTD, a Shenzhen-based company founded in 2016 and working in green power solutions for more than ten years. Through a vetted network of production partners, we bring a broad range of power products together in one place and consolidate each order for you. Products are checked before dispatch, packed for export and shipped from local stock, and our team stays available for technical advice, fitting questions and after-sales help.
FAQ
Will this pack fit my cart?
It fits 36V carts whose tray has room for the case listed in the Specifications section, and most carts that ran six 6V blocks already do, because the pack is smaller than the bank it replaces. Compartments still vary between makers, so measure the tray and the clearance above the terminals before you order. The pack is heavy enough that tray support matters too, so check that as well. Send us your measurements and a photo if you want a second opinion on this 36V lithium golf cart battery before it ships.
How is this different from your standard 36V 100Ah pack?
Both are 36V golf cart batteries of the same capacity, so the choice comes down to current headroom and case. The Pro carries a 200A board inside a sheet-metal case, while the standard 36V 100Ah model uses a 150A board. If you run a heavy cart on hilly ground or tow with it, the extra headroom is worth having; on flat ground the standard pack covers the job. And if you are replacing a lead-acid set and want a lithium battery for golf cart duty without paying for margin you will never use, the standard version is the value pick.
Can I run a trolling motor or accessories from it?
Yes. The pack is sized for cart-duty loads, and a trolling motor, fish finder, lights or a pump draws far less than a cart does under acceleration. The figure worth checking is your motor's continuous amp draw against the pack's continuous rating rather than its start-up surge — that is the number that matters when a deep cycle lithium battery is asked to hold a slow troll for hours. Plenty of buyers use it as a lithium battery for golf cart transport through the week and a trolling supply at the weekend, and the monitor keeps an eye on state of charge either way.
Can I keep using my old lead-acid charger?
No. A lead-acid charger does not have the right profile for a LiFePO4 pack and can leave it part-charged, which is why a matched golf cart battery charger comes with the battery. If you already own a lithium charger rated for 36V LiFePO4, send us its output voltage and current before you use it. This is one of the practical differences between lithium golf cart batteries and the lead-acid sets they replace: the charger has to match the chemistry, not just the voltage.
Is it worth replacing a lead-acid set that still works?
If the bank is three or four seasons old, the day-to-day difference usually settles it. A golf cart lithium battery like this one takes most of the weight out of the cart, holds its voltage as it discharges so the cart does not slow over the last few holes, and needs no watering between rounds. Where it makes less sense is a cart with tired wiring or a failing controller — sort those first, or the new pack will simply expose them.
My cart is 48V — is this the right pack?
No. Count the blocks: eight 6V batteries or six 8V batteries means a 48V cart, which needs a 48V pack and a 48V charger — the two voltages are not interchangeable. For that cart, look at the 48V lithium golf cart batteries in the range. If you are not sure which voltage you have, send a photo of the battery bay and the cart's model plate and we will tell you.
